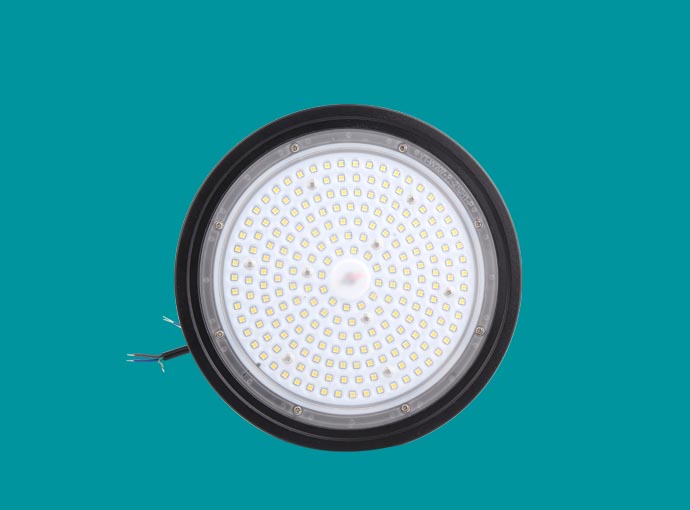

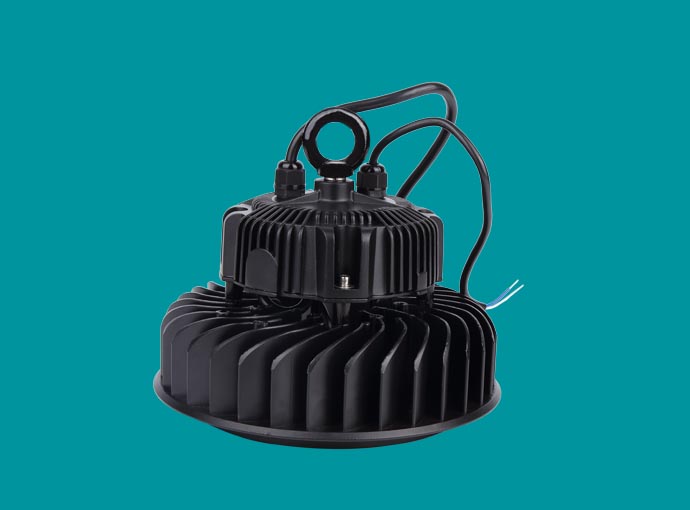

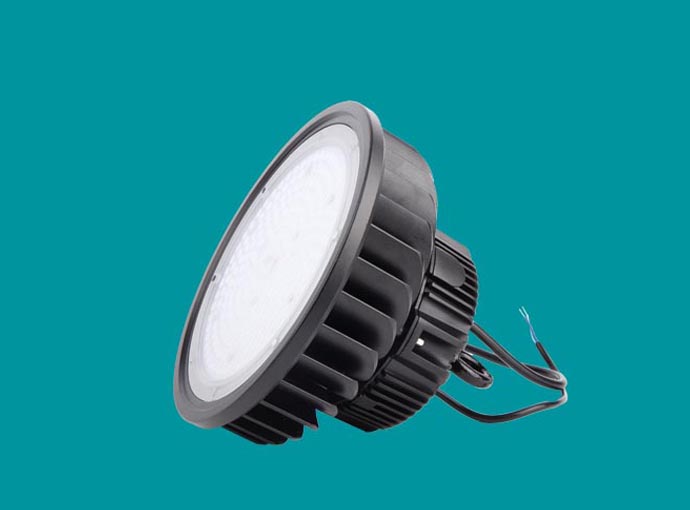

150W LED Highbay Light

GS-HB15-AL

Features:



1. Philips 3030 LEDs. Lamp efficiency >130lm/w

2. Meanwell HBG LED driver, 5 years warranty

3. 1007 Pure aluminum with heatsink finning
4. Better PCB layout, safe and reliable for longtime operation

5. 120° 60° 90° lens or PC cover availale

6. L70+ lumen maintenance. 54,000 hours life span

Specification

Datasheet




  Model

 GS-HB15-AL

  Dimension

 φ240X145mm

  Power

 150W

  Lumen

 19,500lm

 Lumen Efficiency

 130lm/w

 LEDs

 Philips 3030

 Driver

 Meanwell HBG AB

 CCT

 3000K / 4000K / 5000K / 5700K

 CRI

 80Ra

 Input Voltage

 90-305V / 50/60Hz

 Power Factor

 >0.9

 Dimmable

 Designed to be compatible with most 0-10V

 Warranty

 5 Years

 Color

  Black

  Installation Way

 Hanging / Ceiling / Pole Installation

Working Temp.

-20℃ - 50℃







Package



PE bag+ Pearl Cotton + Box
Qty / Ctn: 1pc
Carton Size: 29x29x22cm
N.W: 3.55KG
G.W: 4.35KG




Application




The highbay light is applicable for warehouse, factory, exhibition center, etc.
