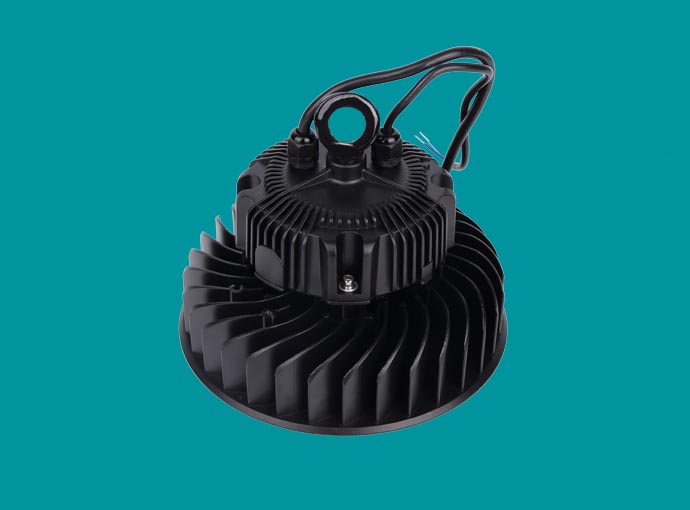

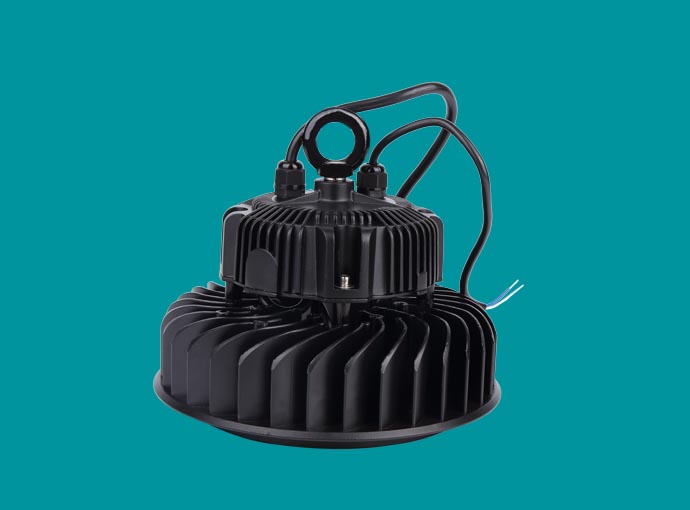

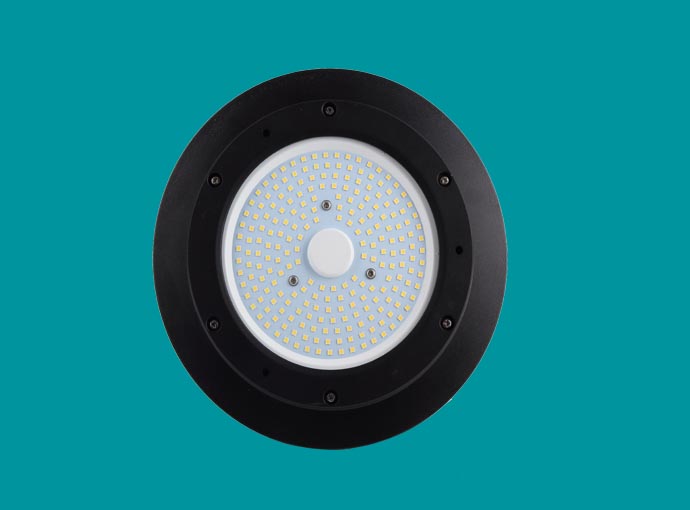

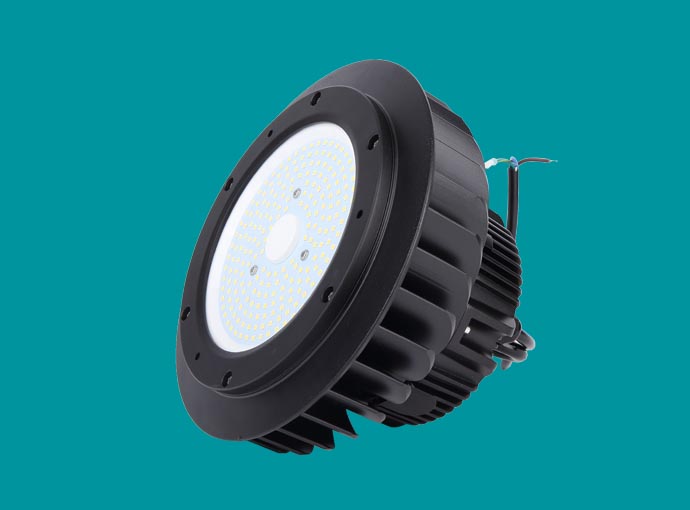

150W LED Highbay Light

GS-HB15-AG

Features:




1. Philips 3030 LEDs. Lamp efficiency >140lm/w

2. Meanwell HBG LED driver, 5 years warranty

3. 1070 Pure aluminum with heatsink finning
4. Better PCB layout, safe and reliable for longtime operation

5. 120° 60° 90° lens / reflector or PC cover availale

6. L70+ lumen maintenance. 54,000 hours life span


Specification

Datasheet





 Model

 GS-HB15AG

 Dimension

 φ240X141mm

 Power

 150W

 Lumen

 19500lm

 21000lm

Lumen Efficiency

 130lm/w

 140lm/w

LEDs

 Philips 3030

 Driver

 Meanwell HBG AB

CCT

3000K / 4000K / 5000K / 5700K

CRI

80Ra

 Input Voltage

 90-305V / 50/60Hz

 Power Factor

 >0.9

 Dimmable

 Designed to be compatible with most 0-10V

Warranty

 5 Years

Color

 Black

 Installation Way

 Hanging / Ceiling / Pole Installation

Working Temp.

 -20℃ - 50℃





Package






PE bag+ Pearl Cotton + Box
Qty / Ctn: 1pc
Carton Size: 29x29x22cm
N.W: 3.55KG
G.W: 4.35KG




Application




The highbay light is applicable for warehouse, factory, exhibition center, etc.
